The Prefabricated Roof System offers an innovative, durable, and energy-efficient roofing solution designed for modern prefabricated and modular buildings. Built with precision engineering and high-quality materials, this roofing system combines superior waterproof performance, thermal insulation, and long-lasting structural strength. It best suitable for residential, commercial, and industrial applications.
| Product Name | Prefabricated Roof |
| OSB Board Thickness | 9 mm / 12 mm / 15 mm (Customizable) |
| Color Options | Red, Grey, Black, Blue, Brown, or Customized Color |
| Waterproof Performance | No Leakage Under 300mm Water Column for 24 Hours |
| Temperature Resistance | -40°C to +80°C |
| Installation Type | Prefabricated Assembly / Quick Installation on Site |
| Service Life | 50 Years (Depending on Material) |
| Certification | ISO9001, CE, SGS (Available Upon Request) |
Customized House Prefabricated Roof System
Our Customized Prefabricated Roof System is the definitive solution to systemic construction challenges, engineered for architects, general contractors (GCs), and property developers. We address the core inefficiencies of traditional building—labor shortages, timeline volatility, and budget overruns, by moving complex roof construction into a controlled, off-site environment.
Product Details
| Roof Tile Material | Resin Tile / Metal Stone-Coated Steel Tile |
| Waterproof Layer | High-Density Waterproof Membrane (Optional: Self-Adhesive or Bituminous Type) |
| Base Board Material | OSB Board (Oriented Strand Board) |
| Support Structure | Galvanized Steel Frame / Light Steel Truss |
| Surface Treatment | UV-Resistant Coating, Anti-Corrosion Finish |
| Tile Thickness | 0.4 – 0.6 mm (for Metal Tile) / 2.0 – 3.0 mm (for Resin Tile) |
| OSB Board Thickness | 9 mm / 12 mm / 15 mm (Customizable) |
| Color Options | Customized |
| Thermal Conductivity | ≤ 0.033 W/(m·K) |
| Waterproof Performance | No Leakage Under 300mm Water Column for 24 Hours |
| Wind Resistance | Up to 120 km/h |
| Temperature Resistance | -40°C to +80°C |
| Fire Rating | Class B (Optional Upgrade to Class A) |
| Sound Insulation | ≥ 25 dB |
| Service Life | 50 Years |
| Installation Type | Prefabricated Assembly / Quick Installation on Site |
| Applicable Buildings | Prefabricated Houses, Modular Buildings, Light Steel Villas, Warehouses, Workshops, Resorts |
| Certification | ISO9001, CE, SGS (Available Upon Request) |

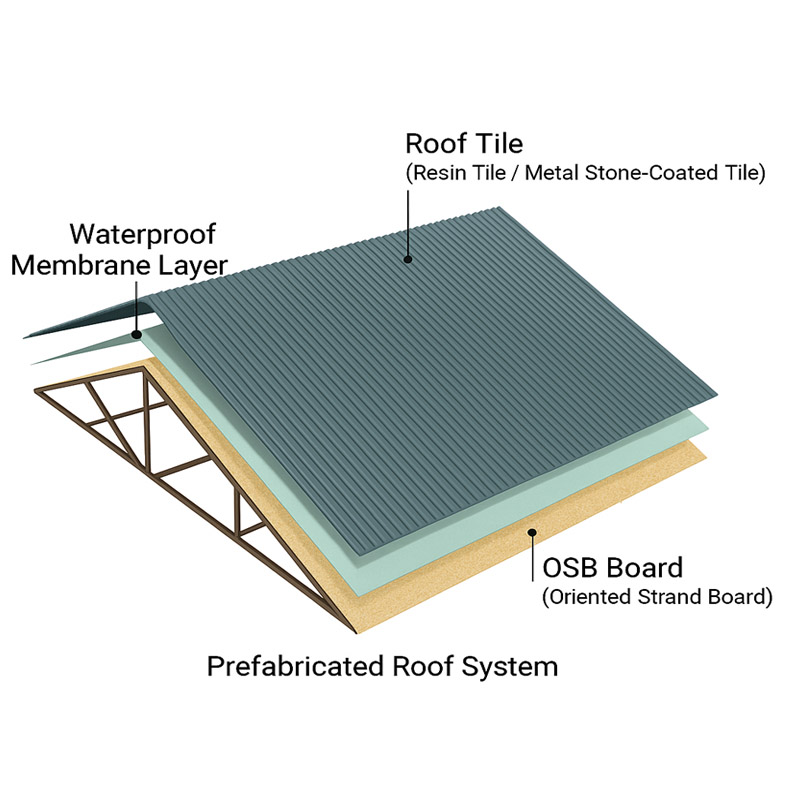

Roof System Composition
Roof Tile (Resin Tile / Metal Stone-Coated Tile)
The top layer uses premium resin tiles or metal stone-coated steel tiles, known for their superior corrosion resistance, UV protection, and long service life. These tiles provide excellent appearance and color retention, enhancing architectural aesthetics and reducing maintenance costs.
Waterproof Membrane Layer
A high-quality waterproof membrane forms a continuous protective barrier that effectively prevents leakage, condensation, and moisture intrusion, even under severe weather conditions. It ensures the entire prefabricated roof structure remains dry, safe, and durable.
OSB Board (Oriented Strand Board)
The OSB Board offers strong load-bearing performance and structural integrity. Made from high-strength wood strands bonded with waterproof resin, it provides excellent dimensional stability, rigidity, and impact resistance. OSB board is ideal and key component for light steel and modular building systems.

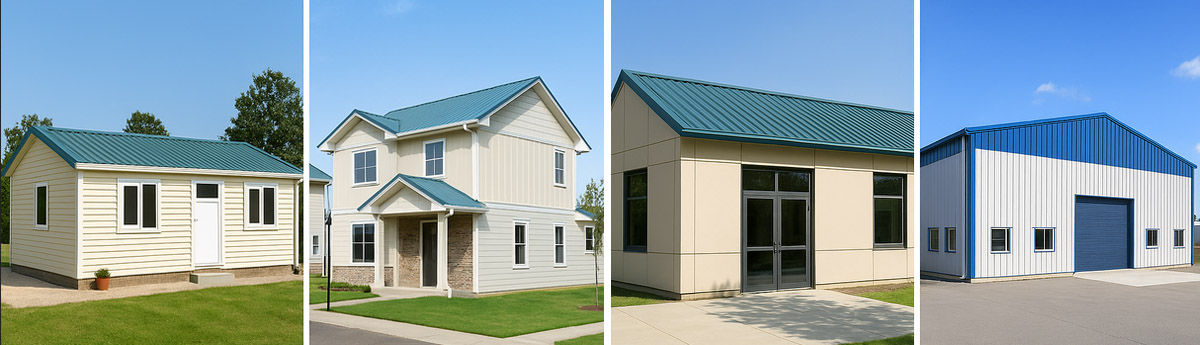

Applications
Our prefabricated roofs have a very wide range of applications, for example:
FAQ
1. What is a prefabricated roof system made of?
Our prefabricated roof system is built with high-quality galvanized steel structure, color-coated roof panels, and optional thermal insulation layers. These materials provide excellent durability, weather resistance, and energy efficiency for modular and prefab houses.
2. Can the roof system be customized for different modular house designs?
Yes. We provide customized roof solutions for various prefabricated house types — including flat, gable, and sloped roofs. Size, color, thickness, and insulation can all be tailored to meet your architectural and energy-saving requirements.
3. How easy is it to install the prefabricated roof system?
Our modular roof systems are pre-engineered for fast and easy installation. All components are pre-cut, labeled, and connected with bolts, allowing your construction team to assemble the steel roof structure efficiently with minimal on-site work.
4. Is your roof system suitable for different climates?
Absolutely. Our prefab roof systems are designed to perform well in all weather conditions — from heavy rain and snow to hot coastal climates. We can upgrade your roof with heat insulation, soundproof, or waterproof panels based on your region.
This Prefabricated Roof System with excellent waterproof and thermal insulation performance, lightweight and easy to install, you can custom materials, colors, and design for your building. Long service life and low maintenance cost. Contact Today!
